Compact USB Solutions
USB 1553: USB 1553 family of pocket-sized USB adapters enable computers to communicate with, simulate, test, and monitor MIL-STD-1553 equipment and systems.
- Upto 2 Dual Redundant 1553 Channels
- 8 Avionics Discrete I/O
- USB 2.0 Bus Powered
- 32MB Memory
USB 429/717/708: USB family of pocket-sized USB adapters enable computers to communicate with, simulate, test, and monitor ARINC 429, 717, 708 equipment and systems.
- Up to 16 ARINC 429 Channels
- Up to 4 ARINC 717/ 708 Channels
- 8 Avionics Discrete I/O
- USB 2.0 Bus Powered
- 32MB Memory
USB Multi: USB MULTI family of pocket-sized USB adapters enable computers to communicate with, simulate, test, and monitor Avionics different protocols in a single device equipment and systems.
- 1 dual Redundant Channel 1553
- 6 Channel ARINC 429, 2 Channel ARINC 708, 4 Channel ARINC 717
- Upto 4 RS422/485/ Differential DIO
Embedded Avionics Interfaces
PCI/ PCIe: Enables computers and networks to interface with multiple avionics databuses for testing, validating, simulating for commercial and military avionics equipment and systems.
- MIL-STD-1553 – Upto 2 Channel
- ARINC 429 – Upto 16 Tx/Rx
- ARINC 717 – Upto 4R/4T
- ARINC 708 – Up to 2R/2T
- Serial Upto 4
- 32 Avionics DIO
PXIe/cPCI: Used in multi-slot PXI Express and cPCI Express test systems, with multiple avionics databuses for testing, validating, simulating for commercial and military avionics equipments.
- MIL-STD-1553 – Upto 2 Channel
- ARINC 429 – Upto 16 Tx/Rx
- ARINC 717 – Upto 4R/4T
- ARINC 708 – Up to 2R/2T
- Serial Upto 4
- 32 Avionics DIO

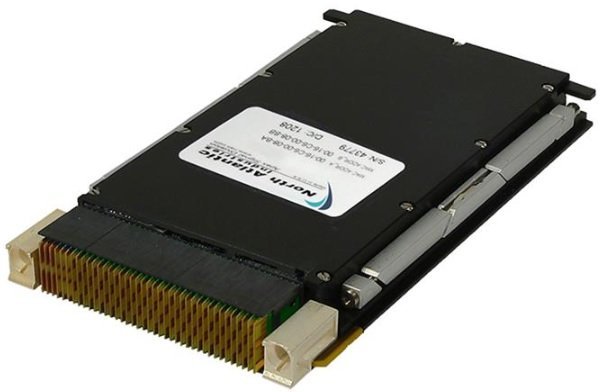

VME/ VPX: Multifunction I/O and Communications Board, can be configured with up to Six/ Three smart function modules. Ideally suited for rugged military, industrial, and commercial applications.
- MIL-STD-1553 – Upto 24 Channel
- ARINC 429 – Upto 72 Tx/Rx
- CAN Bus upto 8
- Serial Upto 8
- 2x Ethernet
- Connections via front, rear, or both
Small Form Factor Boards
mini PCIe: ME1000 family of mPCIe cards enable embedded computers to interface with MIL-STD-1553 or ARINC 429/717 avionics databuses.
- MIL-STD-1553 – Upto 2 Channel
- Compact Size
- Flexible Mounting
- Reduced Cost
- Serial optional
XMC/PMC: Databus interface cards enable embedded systems to communicate with, simulate, test, and monitor avionics equipment and systems for MIL-STD-1553, ARINC 429,717, 708.
- MIL-STD-1553 – Upto 8 Channel
- ARINC 429 – Upto 20
- ARINC 717/708 upto 4
PCIe/104: PE1000 family of PCIe/104™ and PCI/104-Express™ cards enable embedded computers to interface with a variety of avionics databuses.
Simulation and Rugged Avionics Computers
OmniBus Box II: These versatile units can be controlled through Ethernet or USB, or can be programmed to operate standalone. OBB2 is perfect for challenging simulation, test, interface, bridging, control, simulation and data recording applications.
- MIL-STD-1553 – Upto 2 Channel
- ARINC 429 – Upto 16 Tx/Rx
- ARINC 717 – Upto 4R/4T
- ARINC 708 – Up to 2R/2T
- Serial Upto 4
- 32 Avionics DIO
AB3000: Rugged, conduction-cooled, COTS devices combine a powerful computer processor, multi-protocol databus interfaces, Ethernet, USB, and other I/O in a small, lightweight package.
- MIL-STD-1553 – Up to 4 channels
- ARINC 429 – Up to 24 channels
- ARINC 708 – Up to 4 channels
- ARINC 717 – Up to 2 channels
- Avionics Discrete I/O – Up to 48.

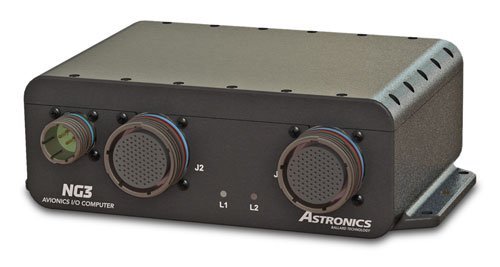

NG Series: NG is a new family of Commercial-off-the-Shelf (COTS) avionics I/O computing platforms from Astronics. They provide flexible, problem-solving solutions for areas such as mission computing, distributed control, and avionics data conversion.
- MIL-STD-1553
- ARINC 429, 708, 717
- Serial, CANBus, Discrete
- Ethernet, USB 2.0 Host
- 2D/3D Video, Audio
- IRIG A or B, AM (input), PWM, PPS
- mPCIe expansion option
Data Loaders and Co-Pilot Software

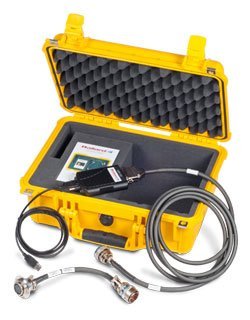

Data Loader: DL 615 is the modern replacement for outmoded 3½-inch floppy disk only ARINC 615 portable data loaders (PDL). Any PC running Microsoft Windows can perform data loads using the USB to ARINC 429 interface, cables, and software included with the DL 615.
- ARINC 615-3 and 603 protocols
- Load from floppy, HD, USB, CD, DVD, or network
- Clear indicators for load progress and status
- Protocol recording and diagnostic tools
Co-Pilot: CoPilot enables you to interact with avionics bus data without writing your own code. This intuitive graphical software is the leading productivity tool for databus analysis and simulation. Comprehensive API libraries and programs simplify and speed the development of custom applications..
- Supports multiple hardware devices and protocols simultaneously.
- no better tool than CoPilot to accurately diagnose databus system issues
- Enable to view or record databus activity.
AID: Solve avionics system integration and compatibility problems using Aircraft Interface Devices. These rugged units are an essential part of many avionics upgrades, such as electronic flight bag (EFB) and in-flight entertainment (IFE) systems, where they serve avionics data while protecting aircraft control domains from interference and corruption.
- Rugged MIL Qualified
- with Multiple Avionics Protocol
- With inbuilt processing capability
- Integrated Ethernet/ Switch (WAN &LAN)
Time Triggered Ethernet Interface solutions
TTE: Our TE2 module is certifiable, single-port, tri-redundant, deterministic Ethernet communications interface module that supports TTTech’s certifiable TTEthernet product consisting of three traffic classes: SAE AS6802 (Time-Triggered Ethernet), ARINC 664 Part 7 (AFDX), and/or IEEE 802.3 best-effort protocol.
- Three modes of Ethernet operation: IEEE 802.3; ARINC 664 Part 7 (AFDX); SAE AS6802 TTE
- Single-port, triple redundant Ethernet module
- Supports 10/100/1000 Mbps Ethernet
68PPC2: 3U OpenVPX, NXP, QorIQ T2080 quad-core processor, PowerPC-based, Single Board Computer (SBC) that can be configured with up to two intelligent function modules. Ideally suited for rugged defense, commercial aerospace, and industrial applications.
- TTE module can be mount on this SBC
- Upto 8 GB RAM
- Up to 32 GB SATA II NAND Flash (256 GB expansion)
- < 20 W power dissipation
- 2x Ethernet
75PPC1: 3U cPCI NXP QorIQ P2041, PowerPC-based, Single Board Computer (SBC) that can be configured with up to two smart function modules. Ideally suited for rugged defense, commercial aerospace, and industrial applications
- TTE module can be mount on this SBC
- Upto 8 GB RAM
- Up to 32 GB SATA II NAND Flash (256 GB expansion)
- < 20 W power dissipation
- 2x Ethernet
