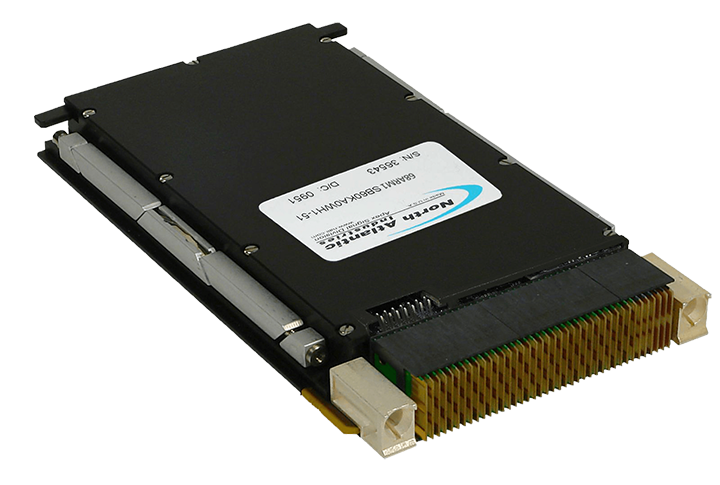

3U Open VPX Single Board Computer with IO

Model 68ARM1: The 68ARM1 is a 3U VPX ARM® Cortex®-A9-based, Single Board Computer (SBC) that can be configured with up to three smart function modules. Ideally suited for rugged defense, commercial aerospace, and industrial applications, the 68ARM1 delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.

  • ARM® Cortex®-A9 Dual Core 800 MHz Processor
  • 512 MB DDR3L SDRAM
  • 32 GB On-Board SATA II NAND Flash
  • Expansion SATA II Flash
  • 70+ modules to choose from
Datasheet

Model 68PPC2: The 68PPC2 is a 3U OpenVPX, NXP® , QorIQ® T2080 quad-core processor, PowerPC-based, Single Board Computer (SBC) that can be configured with up to two intelligent function modules. Ideally suited for rugged defense, commercial aerospace, and industrial applications, the 68PPC2 delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.

  • NXP® QorIQ® T2080 Quad-Core e6500 Processor @1.5 GHz
  • Up to 8 GB DDR3 SDRAM
  • Up to 32 GB SATA II NAND Flash
  • 70+ modules to choose from

Datasheet

Over 100 high-density, COSA smart modules are available for placement on our intelligent I/O Boards, which can operate as standalone systems. Further, our OpenVPX, VME, cPCI and PCIe boards can be placed into Rugged COSA Systems that range from a single module to high-density systems supporting up to 10 motherboards and 60 smart modules (and virtually everything between)

6U VME Single Board Computer with IO

Model 64ARM1: 64ARM1 is a 6U VMEARM® Cortex®-A9-based, Single Board Computer (SBC) that can be configured with up to six smart function modules. Ideally suited for rugged defense, commercial aerospace, and industrial applications, the 64ARM1 delivers off-the-shelf solutions that accelerate deployment of SWaP-optimized systems.

  • Compact 6U VME SBC with support for 6 independent, smart function modules
  • 70+ modules to choose from
  • Independent x1 SerDes interface to each function module slot
  • COSA® architecture
  • ARM® Cortex®-A9 Dual Core 800 MHz Processor
  • 512 MB DDR3L SDRAM
  • Up to 32 GB SATAII NAND Flash (4 GB standard)
  • < 5 W MB power dissipation
  • Front and/or rear I/O
  • 2x 10/100/1000 Base-T Ethernet; 2 to rear, or 1 to rear and 1 to front I/O6U VME with Master VME Bus capability
  • Support for 6 independent, smart function modules
  • 70+ modules to choose
Datasheet

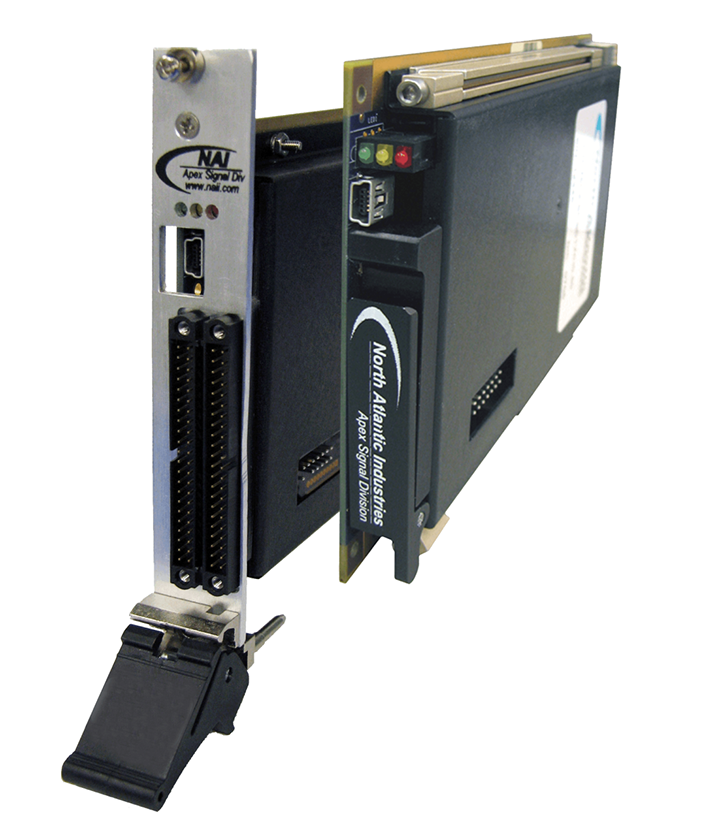

3U cPCI Single Board Computer with I/O

Model 75ARM1: The 75ARM1 is a 3U cPCI ARM® Cortex®-A9-based, Single Board Computer (SBC) that can be configured with up to three smart function modules.

  • ARM® Cortex®-A9 Dual Core 800 MHz Processor
  • 512 MB DDR3L SDRAM
  • Up to 32 GB SATAII NAND Flash
  • 70+ modules to choose from
  • Rear Ethernet option
Datasheet

Model 75PPC1: The 75PPC1 is a 3U cPCI NXP® QorIQ® P2041, PowerPC-based, Single Board Computer (SBC) that can be configured with up to two smart function modules.

  • NXP QorIQ P2041 Quad-Core e500mc Processor @ 1.2 GHz
  • Up to 8 GB DDR3L SDRAM
  • Up to 32 GB SATA II NAND Flash
  • 70+ modules to choose
Datasheet

Model 75INT2: The 75INT2 is a 3U cPCI Intel® Core™ i7-based, Single Board Computer (SBC) that can be configured with up to two smart function modules.

  • Intel® Core™ i7-3517UE @ 1.5 GHz Dual Core Processor
  • Up to 8 GB DDR3L SDRAM
  • Up to 32 GB SATA II NAND Flash
  • 70+ modules to choose from
75INT2_Data_SheetDatasheet
